concentrator

[Product introduction]: The Thickener Concentrator is suitable for the demineralization of concentrates and tailings in the concentrato
[Production capacity]: 5.6-384t/24h
[Scope of application]: Thickener Concentrator is widely used in metallurgy, chemical, coal, non-metal ore dressing, environmental protection and other industries.

Send E-mail Inquire Now

Product Description

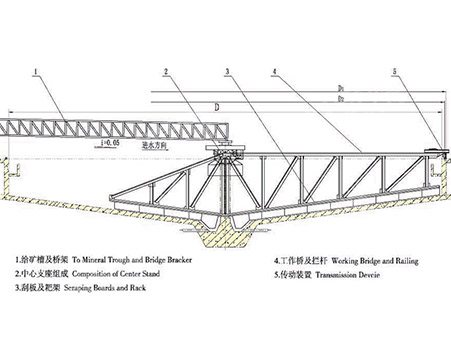

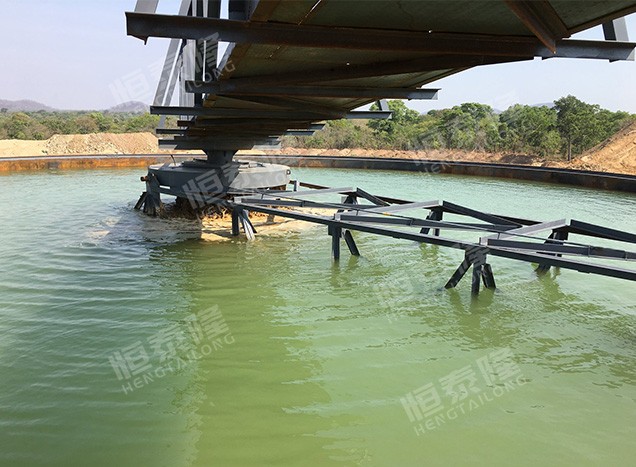

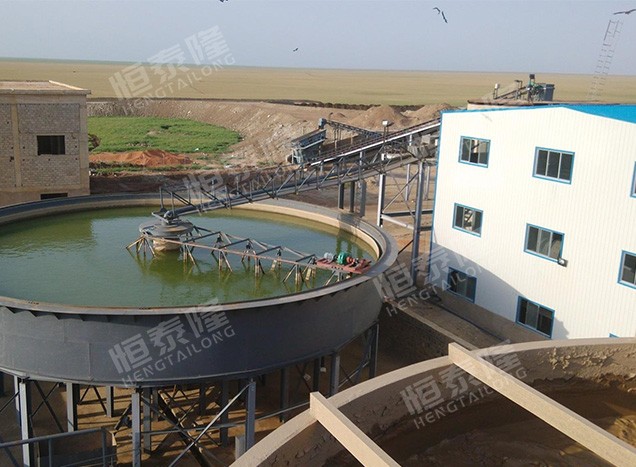

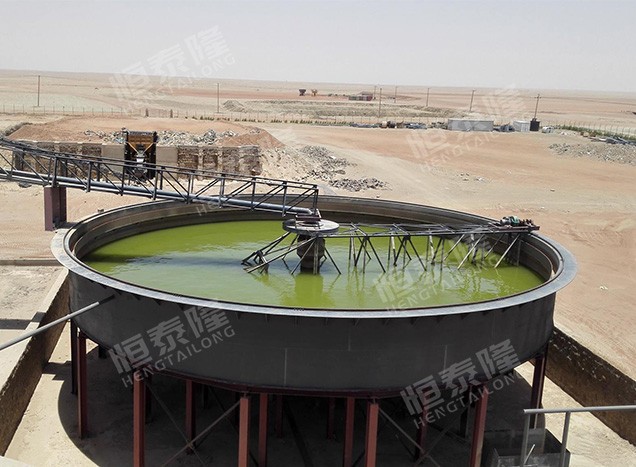

The Thickener Concentrator is mainly composed of a circular thickening tank and a rake mud scraper. The solid particles suspended in the slurry in the thickening tank settle under the action of gravity, and the upper part becomes clarified water, so that the solid and liquid can be separated and deposited on The slime at the bottom of the concentration tank is continuously scraped and collected by the rake scraper to the central ore outlet at the bottom of the tank, and the clarified water overflows from the upper edge of the concentration tank.

Feature:

1adding a flocculant to increase the particle size of the settled solid particles, thereby accelerating the sedimentation speed;
2 Install inclined plates to shorten the settlement distance of the ore particles and increase the settlement area
3exerting the effect of flocculation, filtration, compression and treatment of the dense phase layer of the mud deposit;
4equipped with complete self-control facilities

working process:

(1) The solid particles in the suspension will settle under the action of gravity, and the thickener uses this principle to concentrate the slurry.

Continuous operation of the concentrator During the concentration process, the slurry entering the reservoir gradually forms five different zones. Clarification zone, subsidence zone, transition zone, concentration zone and slime zone. Since the slurry is continuously fed and discharged, there is always a settling zone, and the concentration of the slurry starts from the free settling zone, but the main concentration process is carried out in the concentration zone.

Transmission of the machine: the power of the motor is transmitted to the worm gear reducer through the V-belt, the reducer coupling, and the tweezers that are fixed with the main shaft are rotated. The slurry is subjected to the funnel into the reservoir, and the slurry is in the slurry. The solid particles sink into the bottom of the pool by gravity, and are pushed by the rotating rafters to the discharge port, and the clarified liquid flows out through the overflow tank at the upper part of the pool.

Technical Parameters

Model	Transmission form	Concentration tank Diameter(m)	Depth(m）	Capacity(t/d)	Motor power(kw)	Weight(kg)
ZS-1	Centre drive	1.8	1.8	5.6	1.1	1300
NZS-3	Centre drive	3.6	1.8	22.4	1.1	2975
NZS-6	Centre drive	6	3	62	3	8700
NZS-9	Centre drive	9	3	140	3	16682
NZS-12	Centre drive	12	3.5	250	3	33131
NG-15	Rollers	15	3.5	390	5.5	9120
NG-18	Rollers	18	3.5	560	5.5	10000
NG-24	Rollers	24	3.7	1000	7.5	24000
NG-30	Rollers	30	3.6	1570	7.5	26420
NT-15	Rack gear	15	3.5	390	5.5	1100
NT-18	Rack gear	18	3.5	560	5.5	12120
NT-24	Rack gear	24	3.7	1000	7.5	28270
NT-30	Rack gear	30	3.6	1570	7.5	30888
NT-45	Rack gear	45	5.1	2400	11	58640
NT-50	Rack gear	50	4.5	3000	11	65920
NT-53	Rack gear	53	5.1	3400	11	69410
