Rotary ore washer

[Feed size]: 0-50mm
[Production capacity]: 1-180 t/h
[Scope of application]: Metallurgical, Mining, chemical, building materials, and other industrial sectors.
[Product introduction]: Rotary drum stone washer machine widely used in the pre-sequence cleaning and screening of ore materials with large amount of impurities, mud and high requirements for cleaning. It can also be used to clean large blocks of ore materials that are difficult to wash, such as stirring, washing, separating and desliming of minerals. It has been widely used in many sand and stone production lines.

Send E-mail Inquire Now

Product Description

Adopting foreign technology, GTX Series ore washing machines have single layer or double layers circular sieve to classify two to three kind different grades sand and stone which should be clearly deslimed . It is mainly used for washing ore before beneficiation operation system, and improving the ore grade for next processing step. It can be used for manganese ore, iron ore, limestone, tungsten, and silica ore, and etc.

Henan Hengtailong Machinery Co., Ltd.

Working Principle:

The cleaning cylinder of the drum washing machine is supported by four tugs, the motor drives the reducer, and the large and small gears drive the cleaning cylinder to rotate at a low speed.

The aggregate containing mud and stone powder is fed from the feed port and enters the rotating drum, and the wear-resistant lining board with a certain angle installed in the cleaning drum is continuously brought down and moved from the feed end to the discharge end. It is circulated many times in the middle and washed by forward or reverse flushing water. The cleaned aggregates are discharged through the screen at the discharge end and screened and dehydrated. The wastewater containing sludge flows out through the perforated baffle at the discharge or feed end.

Henan Hengtailong Machinery Co., Ltd.

Feature:

1Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour.
2Long washing drum of the scrubber retains material for longer, more vigorous washing for complete separation.
3One high output electrical motor driving a rubber wheel system providing efficient torque.
4Rotation speed can be adjusted by advanced reducer.
5The water with high pressure flushed the inwall of drum.
6Can accept material up to 230mm.

Advantages:

This gold scrubber washing machine have a very strong capability of disintegrated the sticky clay. Many manganese iron board with sharp shape has well assembled inside the drum to increase the capability of the disintegrating of the clay.

This machine get a high capacity, which could reach 200 ton/hour, to meet different

This machine is well designed by our experienced engineer, with a very stable performance, and very easy to operate.

There’s many models, and also we can design this machine according to the customer’s special requirement.

Technical Parameters

Model	Drum dimension (mm)	Screen size (mm)	Rotate Speed (r/min)	Feeding Size (mm)	Water consumption (m³/h)	capacity (t/h)	power (kw)	weight (t)
GTX1030	Φ1000×3000	≤20	27.9	≤80	1	40	15	3.8
GTX1230	Φ1200×3000	≤25	27.6	≤100	1.3	70	22	4.7
GTX1430	Φ1400×3000	≤25	27.6	≤100	1.5	80	22	4.9
GTX1545	Φ1500×4500	≤25	21	≤160	1.7	120	30	6.9
GTX2265	Φ2200×6500	≤50	19	≤230	1.8	180	37	15.9

Send Us a Message

If you need our products please write down any questions, we will reply as soon as possible.

Impact crusher

Hammer crusher

Vertical compound crusher

Double stage crusher

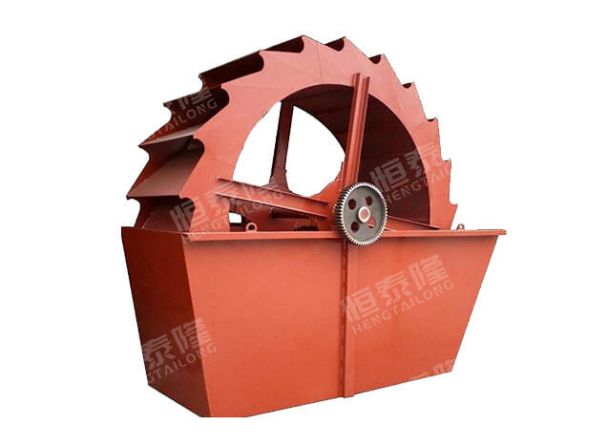

Wheel sand washing machine
